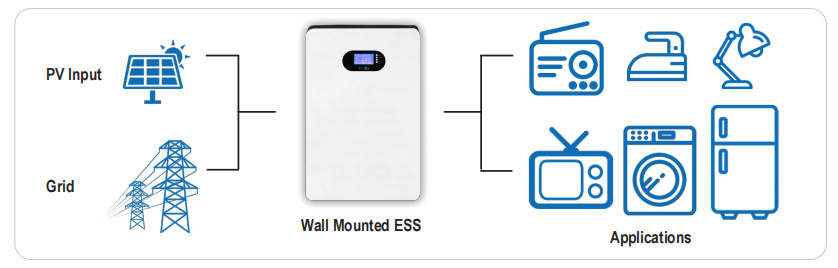

HomeStar - Wall Mounted ESS

All-in-one (Battery &Inverter)

Support Ac charge and PV charge

High Intergration and easy installation

Support UPS function

FEATURES

SPECIFICATIONS

Model No.	SW-WM256100	SW-WM512100	SW-WM512200
Solar Panel	2*550W	4*550W	8*550W
Rated Power	3000W	5000W	5000W
LFP Battery Capacity	25.6V100Ah 2.56KWh	51.2V100Ah 5.12KWh	51.2V200Ah 10.24KWh
Hybrid Inverter
Rated Output Power	3000W	5000W	5000W
Rated Output Voltage	230Vac (50/60Hz Auto Adaptive)
Rated Input Voltage	230Vac (50/60Hz Auto Adaptive)
MPPT Voltage	60~430Vdc	120~450Vdc	120~450Vdc
Max.Solar Charge Current	100A	80A	80A
Max.AC Charge Current	100A	80A	80A
Operating Temperature	Discharge:-10℃~40℃,Charge:0℃~40℃
General Parameters
Dimension	505300140mm	77052090mm	850466145mm
Weight	22KG	44KG	84KG
