HomeStar - All In One ESS

All-in-one (Battery &Inverter)

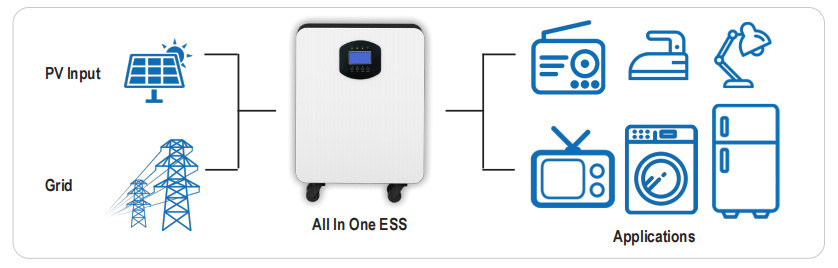

Support AC charge and PV charge
High Intergration and easy installation
Support UPS function

Enquiry

Features

Specifications

Download

FEATURES

SPECIFICATIONS

Model No.	SW-SESS1K1.2	SW-SESS3K2.5	SW-SESS5K5.0	SW-SESS10K10
Solar Panel	1*550W	2*550W	4*550W	8*550W
Rated Power	1000W	3000W	5000W	10000W
LFP Battery Capacity	12.8V100Ah 1.28KWh	25.6V100Ah 2.56KWh	51.2V100Ah 5.12KWh	51.2V200Ah 10.24KWh
Hybrid Inverter
Rated Output Power	1000W	3000W	5000W	10000W
Rated Output Voltage	230Vac (50/60Hz Auto Adaptive)
Rated Input Voltage	230Vac(50/60Hz Auto Adaptive)
MPPT Voltage	20~100Vdc	60~430Vdc	120~450Vdc	90~450Vdc
Max.Solar Charge Current	60A	100A	80A	120A
Max.AC Charge Current	40A	100A	80A	120A
Operating Temperature	Discharge:-10℃~40℃,Charge:0℃~40℃
General Parameters
ESS Dimension	310220460mm	370225510mm	485270770mm	790485220mm
Weight	25KG	32KG	58KG	92KG
